Sleeved Plug Valve

Source: Beijing VP Co.,Ltd.
    Port Size 1/2”-12”
    Pressure Rating ANSI 150#,300#,600#
    Temperature -52~380℃
    Viscosity 0.1~440,000 cSt
    Material WCB、304SS、CF8M、Alloy Material
    Port Type ASME B16.5 Convex flange RF

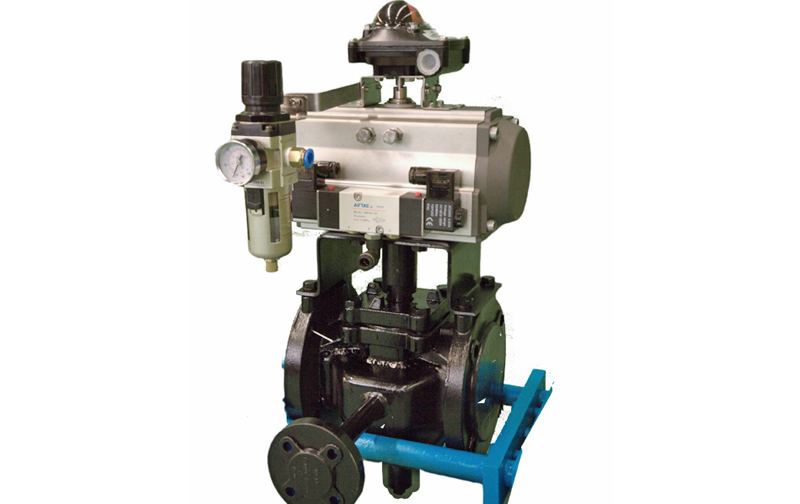

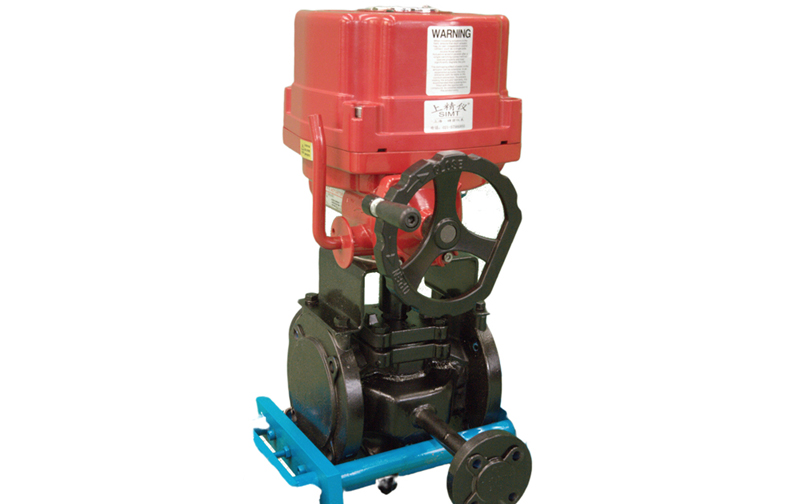

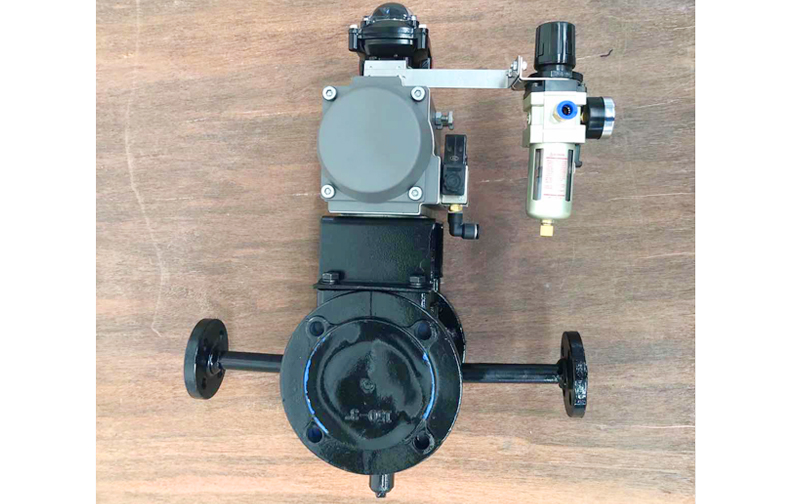

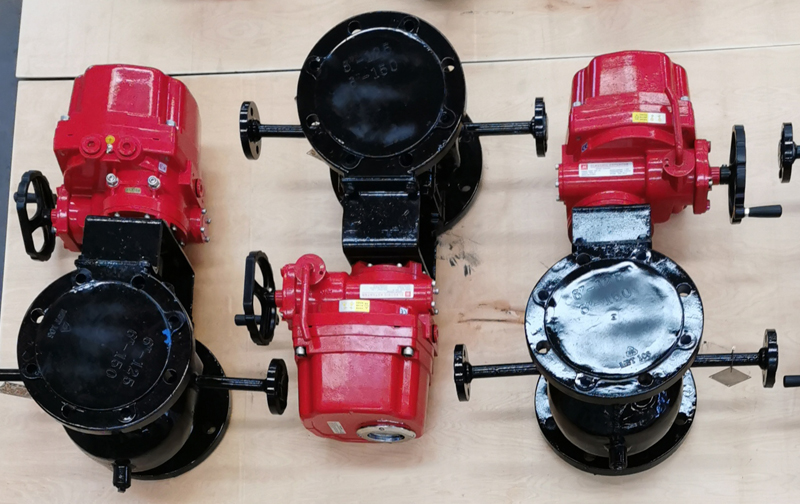

    BJVP Sleeved Plug Valves are known for their simplicity, superior sealing performance, compact size, and lightweight design, making them easy to maintain. Tailored to on-site requirements, these valves can be operated manually, pneumatically, or electrically. The multi-port design allows for space savings and a reduction in the number of valves needed.

    The valve core's design gives it advantages over other types of valves: no dead angles, no residue within the valve body, zero wear, and zero leakage. They are widely applicable in situations that may contain particulates or abrasive conditions.
